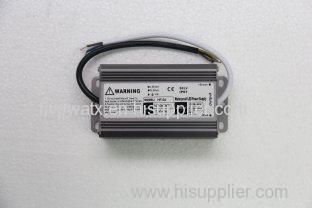

EMC 250V AC 54 Watt Constant Current LED Power Supply 1500mA For Indoor LED Lights HF-54 manufacturer from China Shenzhen Dongdahua Technology Co., Ltd.

EMC 250V AC 54 Watt Constant Current LED Power Supply 1500mA For Indoor LED Lights

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HF-54

Air Convection Cooling Constant C

Air Convection Cooling Constant Current LED Power Supply 54W 20-36V 1500mA IP68 EN61347-1

Competitive Advantage:

1.Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty

1500mA 54 Watt Constant Current LED Power Supply 250V AC For Indoor LED Lights

Specifications:

Product Electric Parameters
Output	Dc Voltage	20-36V±5%
	Rated Current	1500mA±10mA
	Rated Power	54W
	Rippple&Noise(MAX)	200mV
	Voltage Tolerance	±10mA
	Setup, Rise Time	100ms/220VAC
	Hold Up Time(Typ.)	80ms/220VAC
Input	VoltageRange	110-250VAC
	FrequencyRange	47-60HZ
	Power Factor(Typ)	PF>0.5/220VAC
	Efficiency(Typ)	83%
	Ac Current(Typ)	0.5A/235V
	Tnrush Current(Typ)	Cold-start current 2.1A/235V
Protection	Short Circuit	Protection type : recovers automatically after condition is removed
	Overload	Overload protection@145~160%above peak rating
	Over Temperature	Protection typer:shut down o/p voltage.re-power on to recover
Environment	Working Temp	-30~ +60°C(Refer to output load derating curve)
	Working Humidity	20~90%RHno-condensing(Waterproof)
	Storage Temp Humidity	-40~+80°C, 10~90%RH
