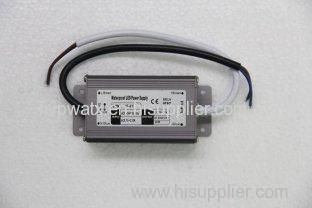

IP68 650mA 21W Constant Current LED Power Supply
IP68 650mA 21W Constant Current LED Power Supply 20V - 36V DC , Switching Power Supplies
Overload Protection Constant Current LED Power Supply 21W 20-36V DC 650mA IP68 EN 55015
Specifications:
|
Product Electric Parameters |
||
|
Output |
Dc Voltage |
20-36V±5% |
|
Rated Current |
650mA±10mA |
|
|
Rated Power |
23.4W |
|
|
Rippple&Noise(MAX) |
180mV |
|
|
Voltage Tolerance |
±20mA |
|
|
Setup, Rise Time |
100ms/220VAC |
|
|
Hold Up Time(Typ.) |
80ms/220VAC |
|
|
Input |
VoltageRange |
90-264VAC |
|
FrequencyRange |
47-60HZ |
|
|
Power Factor(Typ) |
PF>0.5/220VAC |
|
|
Efficiency(Typ) |
82% |
|
|
Ac Current(Typ) |
0.26A/235V |
|
|
Tnrush Current(Typ) |
Cold-start current 0.9/235V |
|
|
Protection |
Short Circuit |
Protection type :recovers automatically after condition is removed |
|
Overload |
Overload protection@145~160%above peak rating |
|
|
Over Temperature |
Protection typer:shut down o/p voltage.re-power on to recover |
|
|
Environment |
Working Temp |
-30~ +60°C(Refer to output load derating curve) |
|
Working Humidity |
20~90%RHno-condensing(Waterproof) |
|
|
Storage Temp Humidity |
-40~+80°C, 10~90%RH |
|
|
Safety&EMC |
Sefety Standards |
CE Mark(LVD), IP67 |
|
Withstand Voltage |
I/P-O/P:1.5KVAC IP-GND:1.5KVAC |
|
|
EMC Test Standrads |
EN 55015:2006;EN 61547:1955+A1:2000;EN 61000-3-2:2006 ;EN61000-3-2:1995+A2:2005 EN61347-1:2008;EN 61347-2-13:2006 |
|
