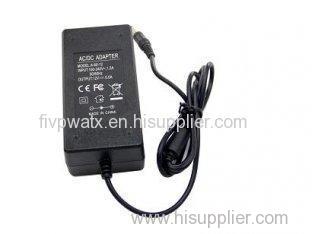

Portable Regulated Voltage AC DC Power Adapter 60W AC 110V - 220V , 12 Volt Power Adapter
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Overload Protection Stable Switching AC DC Power Adap
Overload Protection Stable Switching AC DC Power Adapters 60W 12VDC 5A IP54 1500VAC / 1min
Specifications:
|
Product Electric Parameters |
||
|
Input specification |
Input voltage |
AC110V---220V |
|
Input frequency |
47-63Hz |
|
|
Input surge |
20A@120VAC 40A@230VAC |
|
|
Output specification |
Output voltage can be adjusted |
±10% |
|
Start-up time |
1S(input230V Io=100%) |
|
|
keep time |
20mS (input230V, Io=100%) |
|
|
Voltage regulation |
(Full load) 0.5% |
|
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
|
Over-voltage protection |
105% - 150% of the rated voltage |
|
|
Insulation intensity |
Input---output |
1500VAC/1min |
|
Input---ground |
1500VAC/1min |
|
|
Input---ground |
500VAC/1min |
|
|
Safety standards |
According with GB4943, UL60950-1, EN60950-1 standards. |
|
|
E M C standards |
According with GB9254, EN55022 class A EN61347-2-13:2008 standards |
|
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
|
Storage temperature |
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
|
|
height above sea level |
2000M |
|
|
Structure |
Size (mm) |
120(L)*55(W)*35(H) |
|
Cooling method |
Cooling method |
Natural cooling air convection |
|
Weight |
0
