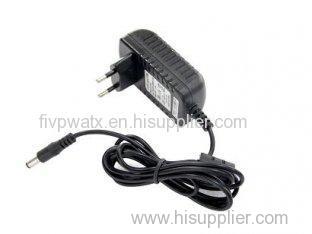

Switching 24 W LED AC DC Power Adapter 12V 50Hz Low Noise , Short-Circuit Protection
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
<span styl
Over-current Protection Switching AC DC Power Adapters 24W 12V 2A 50Hz IP54 EN61347-2-13
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Switching 24 W LED AC DC Power Adapters 12V 50Hz Low Noise , Short-Circuit Protection
Competitive Advantage:
1.built-in EMI filter
2.100% load test
3.Full range of input voltage
4.output voltage accurate and stable
5.Output over-voltage, over-current and short-circuit protection
6.Output low ripple and noise
7.Two year warranty
8.Average working no trouble 50, 000 hours
Specifications:
|
Product Electric Parameters |
||
|
Input specification |
Input voltage |
AC110V---220V |
|
Input frequency |
50-60Hz |
|
|
Input surge |
20A@120VAC 40A@230VAC |
|
|
Output specification |
Output voltage can be adjusted |
±10% |
|
Start-up time |
1S(input230V Io=100%) |
|
|
keep time |
20mS (input230V, Io=100%) |
|
|
Voltage regulation |
(Full load) 0.5% |
|
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
|
Over-voltage protection |
105% - 150% of the rated voltage |
|
|
Insulation intensity |
Input---output |
1500VAC/1min |
|
Input---ground |
1500VAC/1min |
|
|
Input---ground |
500VAC/1min |
|
|
Safety standards |
According with GB4943, EN60950-1 standards. |
|
|
