You are here: home  > Waterproof LED Driver  > 5A 12VDC IP68 Waterproof LED Driver 60W 60Hz EPA3052 With Overload Protection

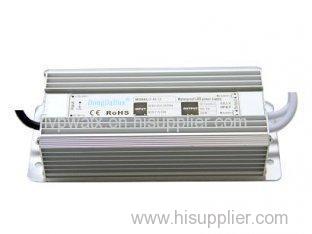

Enlarge 5A 12VDC IP68 Waterproof LED Driver 60W 60Hz EPA3052 With Overload Protection

5A 12VDC IP68 Waterproof LED Driver 60W 60Hz EPA3052 With Overload Protection

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: F-60-12

Overload Protection Waterproof LED Driver Power Sup

Overload Protection Waterproof LED Driver Power Supply 60W 12VDC 5A 60Hz IP68 EPA3052

Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble 50, 000 hours


Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Specifications:


Product Electric Parameters

Input specification

Input voltage

AC90V---264V

Input frequency

47-63Hz

Input surge

20A@120VAC 40A@230VAC

Output specification

Start-up time

1S (230V Input, Io=100%)

keep time

20mS (230V Input, Io=100%)

Voltage regulation

(full)0.5%

Protection function

Overload protection

105% - 150% rated power, automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input--ground

1500VAC/1min

Output---ground

500VAC/1min

Safety standards

According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.

E M C standards

According with EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

2000M

Structure

Size (mm)

175(L)*72(W)*45(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0.87KG/Pcs
