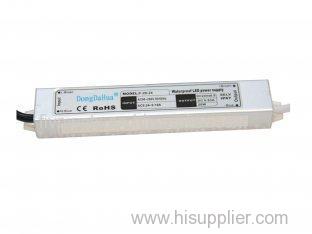

24V DC 1A 20W Waterproof LED Driver Switching Power Supplies AC 120V With Natural Cooling

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: F-20-24

Natural Cooling Waterproof LED Driver Power Supply

Natural Cooling Waterproof LED Driver Power Supply 20W 24VDC 1A IP68 EN55022 Class A


Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.


Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble 50, 000 hours

Specifications:


Product Electric Parameters

Input specification

Input voltage

AC90V---264V

Input frequency

47-63Hz

Input surge

20A@120VAC 40A@230VAC

Output specification

Start-up time

1S (230V Input, Io=100%)

keep time

20mS (230V Input, Io=100%)

Voltage regulation

(full)0.5%

Protection function

Overload protection

105% - 150% rated power, automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input--ground

1500VAC/1min

Output---ground

500VAC/1min

Safety standards

According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.

E M C standards

According with EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

2000M

Structure

Size (mm)

160(L)*30(W)*20(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0.2KG/PCS
