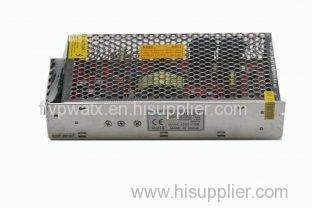

Overload Protection Standard 24 Volt DC Power Supply 100W 8A IP20 EN60950-1
&
Overload Protection Standard 24 Volt DC Power Supply 100W 8A IP20 EN60950-1
Specifications:
|
Product Electric Parameters |
|||
|
Input specification |
Input voltage |
AC90V---110V AC210V---260V |
|
|
Input frequency |
47-63Hz |
||
|
Input surge |
20A@120VAC 40A@230VAC |
||
|
Output specification |
Start-up time |
1S (230V Input, Io=100%) |
|
|
keep time |
20mS (230V Input, Io=100%) |
||
|
Voltage regulation |
(full)0.5% |
||
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
|
|
Over-voltage protection |
105% - 150% of the rated voltage |
||
|
Insulation intensity |
Input---output |
1500VAC/1min |
|
|
Input--ground |
1500VAC/1min |
||
|
Output---ground |
500VAC/1min |
||
|
Safety standards |
According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards. |
||
|
E M C standards |
According with EN55022 class A EN61347-2-13:2008 standards |
||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
|
|
Storage temperature |
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
||
|
height above sea level |
2000M |
||
|
Structure |
Size (mm) |
199(L)*98(W)*42(H) |
|
|
Cooling method |
Cooling method |
Natural cooling air convection |
|
|
Weight |
0.55KG/PCS |
<
||
